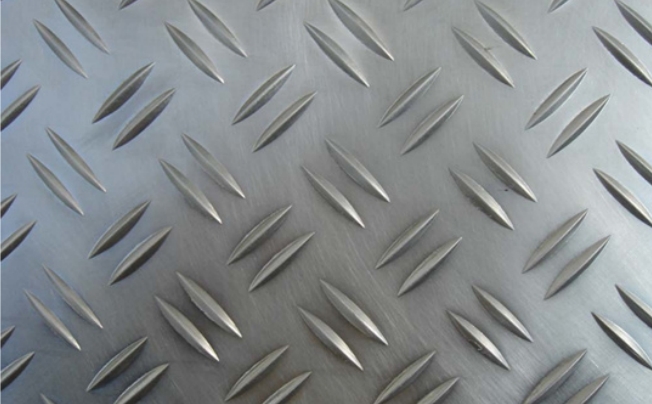

Stainless Steel Patterned Plate

Stainless Steel Patterned Plate

Stainless steel patterned plate is a very attractive and flexible material that looks good and performs exceptionally well. It can be used in floors, stairs, wall covering, splashbacks, shop fittings, cabins, elevators, buildings, etc. That’s because the raised design on it incorporates both anti-skidding function and aesthetic appeal to add some extra style to your projects. Moreover, it’s durable, corrosion-resistant, and easy to install. At Gnee Group, we now stock abundant stainless patterned plates available in different designs, specifications, and popular grades like 304, 304L, 316, 316L, and 321. Welcome to contact us for more details!

services

Stainless steel patterned plate is a very attractive and flexible material that looks good and performs exceptionally well. It can be used in floors, stairs, wall covering, splashbacks, shop fittings, cabins, elevators, buildings, etc. That’s because the raised design incorporates both an anti-skidding function and aesthetic appeal to add some extra style to your projects. Moreover, it’s durable, corrosion-resistant, and easy to install. At Gnee Group, we now stock abundant stainless patterned plates available in different designs, specifications, and popular grades like 304, 304L, 316, 316L, and 321. Welcome to contact us for more details!

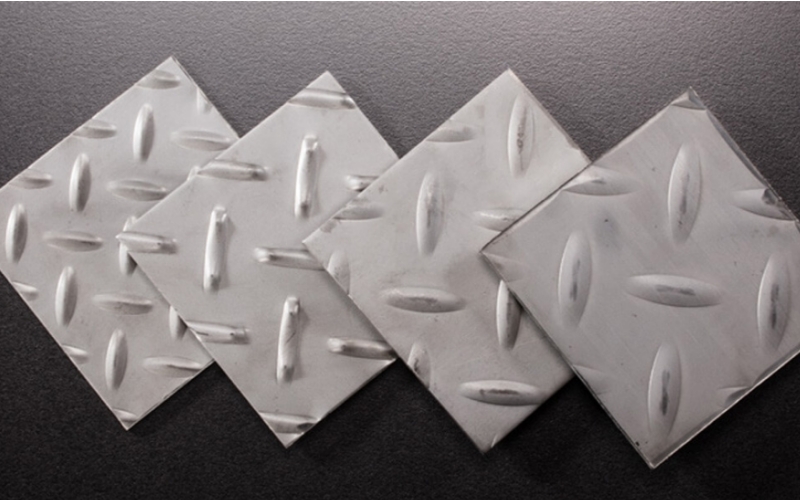

Stainles Steel Patterned Plates

A General Introduction to Product

As its name implies, stainless steel patterned plate is a kind of metal that creates patterns on a stainless steel plate on one or both side(s) to improve anti-skid performance. The patterns with depth will help hide general wear and stains and increase friction. Therefore, it can be used in a multitude of situations where a hard-wearing, low-maintenance, and long-lasting surface is required. Besides, it can also offer good scratch resistance, excellent corrosion resistance, and a beautiful appearance.

Patterned Stainless Steel Plate Specifications

Standard JIS, AISI, ASTM, GB, DIN, EN, SUS
Grade 301, 304, 316, 321, etc
Thickness 0.3 mm — 12 mm
Width 500 mm — 1500 mm or as requested
Length 500 mm — 2000 mm or as requested
Tolerance ±1%
Pattern designs T-shaped, round bean, lentil, diamond, bar-shaped, rice grain, etc
Finish frosted, matt, mirror
Packing PVC + waterproof or paper + wooden package

Manufacturing Process in Our Factory

The manufacturing technology of stainless patterned plates is relatively uncomplicated and cost-effective. At Gnee factory, according to its manufacturing process, it is generally divided into two kinds: embossing and stamping.

1. Embossing

It is produced by rolling a stainless steel plate straight into the embossing mold to form designs on the surface. It will go through the following steps:

Stainless steel plate — annealing and pickling — embossing — straightening — sizing — cross-cutting — examining — stainless steel patterned plate

With a thickness range of 3-6mm, one side of this type is raised and the other is flat. That smooth side can be conducive to securely fixing screws or adhesive. Hence, it is more commonly used as the structural material, used in construction, machinery, automobiles, manufacturing, and other occasions that require strength.

2. Stamping

This type of pattern sheet is usually mechanically stamped on hot or cold rolled stainless steel plates on both sides. So it has concave patterns on one side and convex patterns on the other, which is more applied in civil decoration projects.

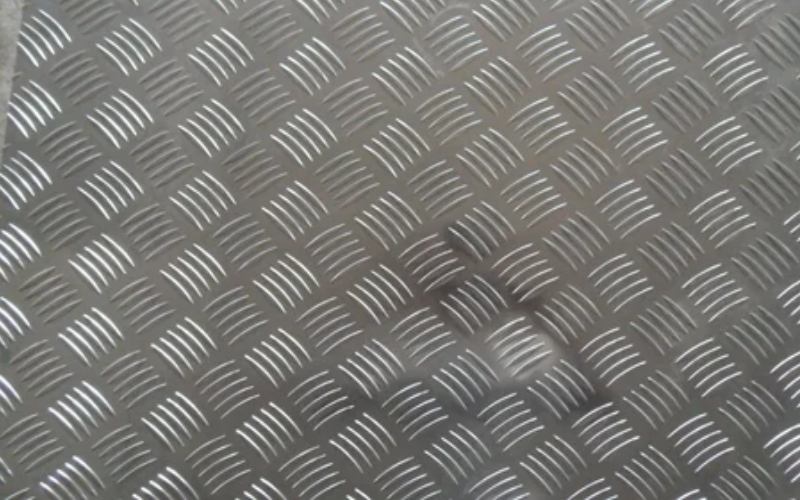

Stainless Patterned Plate

Benefits You Can Enjoy

Stainless steel pattern plate has many good features that can meet the requirements of various projects. For example:

1. Excellent Corrosion Resistance

Using the stainless steel plate as the substrate, it can provide strong anti-corrosion performance. Also, it can be colored or PVC-coated to provide an extra protection layer to prolong its service life.

2. Superior Anti-slipping Performance

These patterns, firstly, not only strengthen the plate but also increase the friction, preventing slipping. Secondly, stains, fingerprints, and general wear can be well hidden. Clients can choose different patterns, sizes, and finishes when buying stainless steel patterned plates in our factory.

3. Good Formability

The plate has good processing performance, able to be cut, drilled, formed, and welded to meet the needs of customers’ specific projects.

4. Beautiful Appearance

It presents a unique and modern look due to patterned designs that can add a touch of sophistication and 3D effect to any project.

5. Versatility

It can be used for both functional and decorative purposes. At Gnee Steel, we supply 301 stainless steel pattern plates, 304 stainless steel pattern plates, 316 stainless steel pattern plates, and 321 stainless steel pattern plates to satisfy your diversified project requirements.

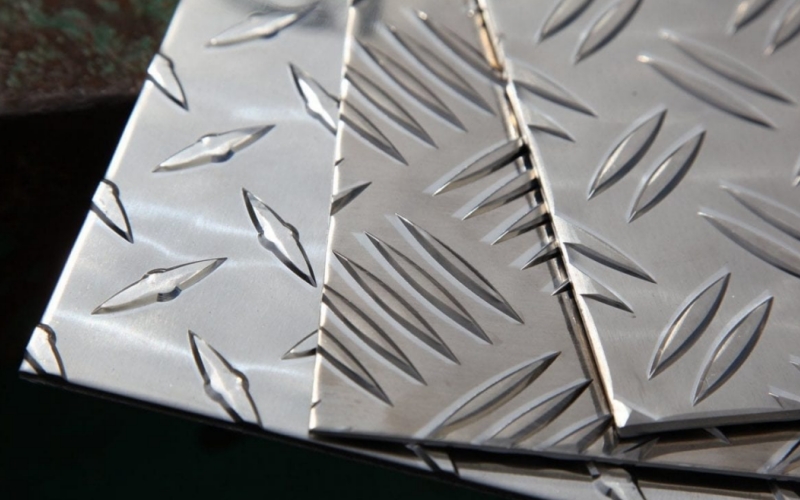

Attractive Finishes

Applications It can be Used

These types of patterned stainless steel sheets are of great interest to a large number of customers from many different fields. Here we list some examples for your reference.

1. Construction: factories, flooring, wall covering/cladding, columns, panels, steel structure, balustrades, shipbuilding, facades, roofing, etc.

2. Industry: mechanical engineering, machinery components, display equipment, commercial refrigerators, etc.

3. Transportation: walkways, garages, ramps, automobile parts, interiors of trucks, stairs, train compartments, etc.

4. Public uses: lifts and elevators, sculptures, furniture, decorations, street facilities, countertops and backsplashes in kitchens and bathrooms, home appliances, water storage tanks, cabinets, etc.

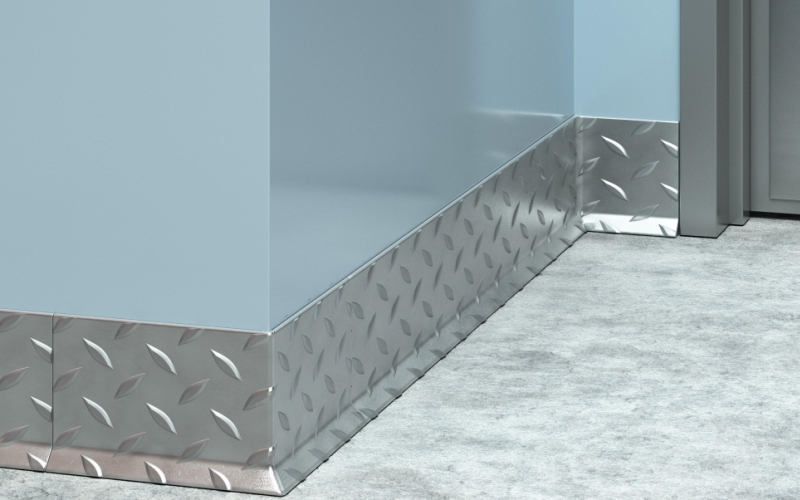

Wall Protection

Buy the Best Stainless Steel Patterned Plate from Gnee Group

Gnee Steel is a professional one-stop solution supplier for stainless steel products in China. We have a factory located in Anyang City, Henan Province, with an annual export capacity of more than 80000 metric tons. What’s more, we have more than 100 senior sales to give you the best solution and technical guidance. Thirdly, all our stainless steel products are offered at affordable prices, cut lengths, and custom designs to benefit customers. Finally, we are 24*7 hours online, greeting to send an inquiry to learn more details now!
