What Is Stainless Steel Concentric Reducer?
Stainless steel concentric reducer is a type of pipe fitting used to join pipes of different diameters. It consists of three parts: two separate concentric rings and the outer, larger ring with an inner section that matches the diameter of the smaller pipe. That is, the fitting has a centerline that stays at the same level throughout the pipe fitting, allowing a smooth transition between the two pipe diameters without causing turbulence or disrupting fluid flow.
What Is Stainless Steel Eccentric Reducer?
Stainless steel eccentric reducer is a type of pipe fitting used for changing the diameter of a pipe. This fitting typically has one side larger than the other, and its centers are not in the same line, hence its name. It can join two different-sized pipes together while maintaining an uninterrupted fluid or gas movement path.

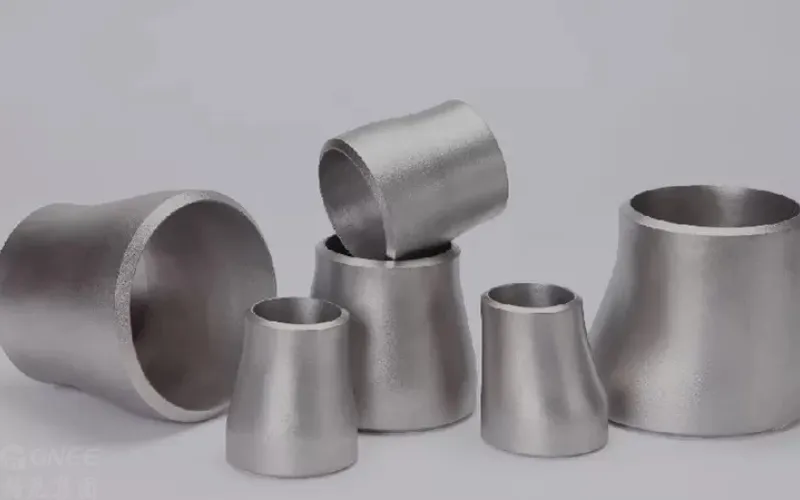

SS Concentric vs SS Eccentric Reducer, What are the Differences?
When it comes to stainless steel reducers, there are two main types: stainless steel concentric reducers and stainless steel eccentric reducers. Here are the key differences between the two:
1. Definition
Stainless steel eccentric reducers are pipes of different diameters whose centers are not in the same line and pipes with one center in the same line are called stainless steel concentric reducers.
2. Function
SS concentric reducer is used to join pipe sections or tube sections on the same axis.
SS eccentric reducer is used to connect piping systems between two pipes of different diameters.

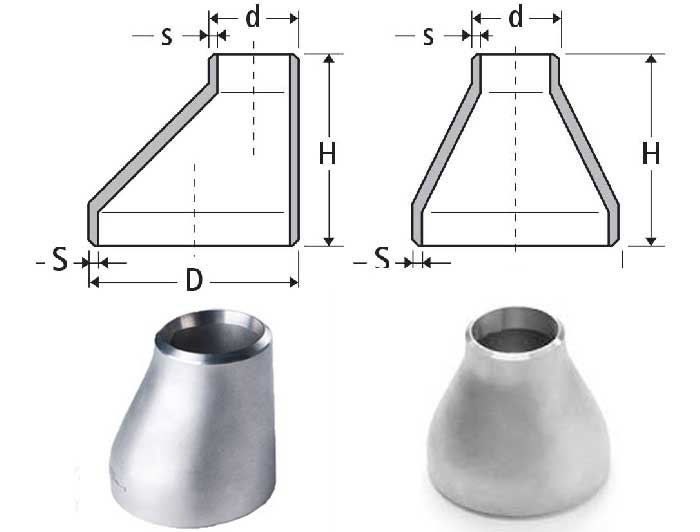

3. Shape
Stainless concentric reducers derive their name from their cone-like shape. They have both ends on the same axis, resulting in the smaller section being in the direct center of the larger section when viewed head-on. This style of reducer is the most common in the market.
Stainless eccentric reducers are a bit different. They have a straight side and a cone-shaped side, causing the centerline to be offset. When viewed head-on, the smaller section is situated against one side of the larger section.

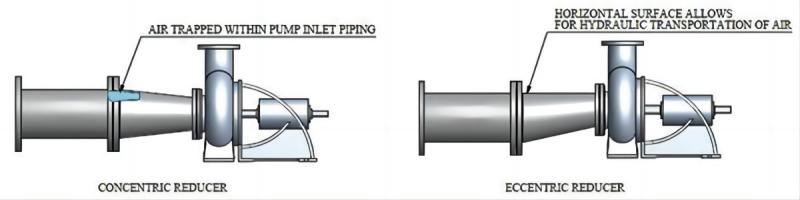

3. Applications
SS concentric reducers are used in piping systems where there is a need for maintaining a consistent flow rate, but pressure levels only matter a little. They work best in installations where the fluid flow requires an equal reduction in the diameter of the pipes. And they can be used for vertical flow liquid pipelines.
SS eccentric reducers are best suited for applications where the fluid flow needs a decrease in volume and change of direction. So they are commonly used in horizontal flow liquid pipelines. Besides, it can be used to connect pipe fittings or flanges of different diameters to change the diameter because the diameter of the orifice at both ends of the pipe is different.
4. Flow Control
SS concentric reducers help maintain a consistent flow rate by maintaining a uniform pressure level across the pipe.
SS eccentric reducers offer the option of controlling the flow rate of a fluid. They can allow the fluid to flow straight through the pipe without impeding the flow rate.
5. Cost
Concentric reducers are less expensive than their eccentric counterparts due to their simpler construction design.
6. Installation
Concentric reducers are relatively straightforward to install. You only need to ensure that the diameters on either end of the reducer align with the sizes of the pipes that they are connected to.
On the other hand, eccentric reducers require careful installation to ensure that the offset area aligns correctly with the piping system. Misalignment can have negative consequences, such as impeded flow and leakages.
Concentric Reducer and Eccentric Reducer Exporter

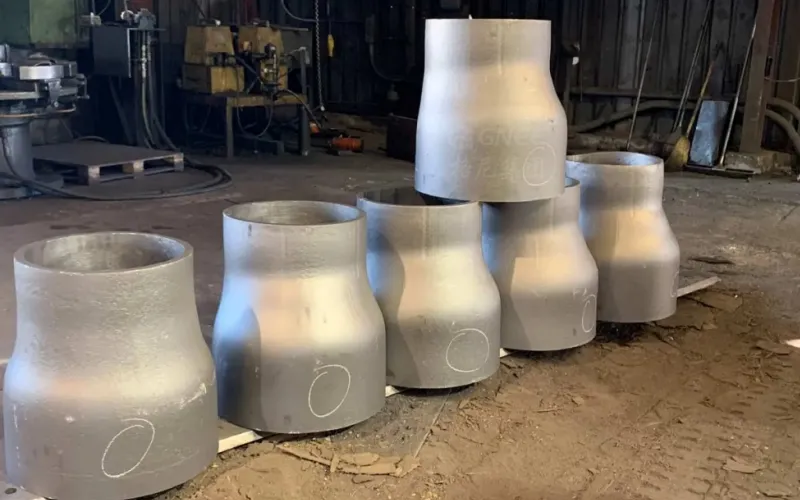

As a professional concentric reducer and eccentric reducer exporter in China, Gnee Steel has accumulated nearly 15 years of experience and expertise in manufacturing stainless steel reducers. At the same time, we also manufacture and export other pipe fittings, such as elbows, tees, and flanges. If you are looking for the ideal source of stainless steel pipe fittings, Gnee would be your best choice!
